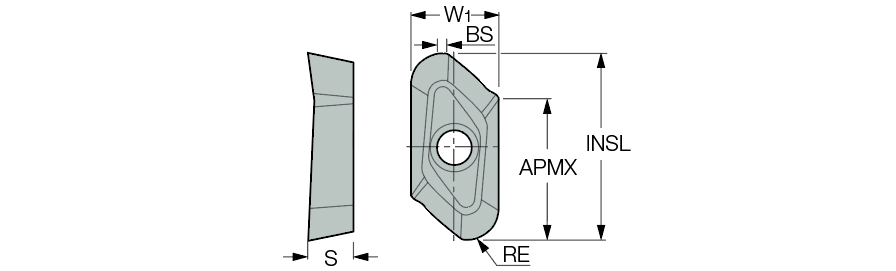

HM90 APCR 220608R-P IC08
Milling Insert; 1.169″ Length × 0.54″ Width × 0.272″ Thickness ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Insert Length (INSL) | 29.7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 22 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Insert Width (W1) | 13.72 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 6.9 mm | Cutting Edge Effective Length (LE) | 22.1 mm |
| Wiper Edge Length (BS) | 0.2 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Super positive and polished 22 mm inserts with various corner radii used for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.042
