HM90 APCR 160532R-P IC08

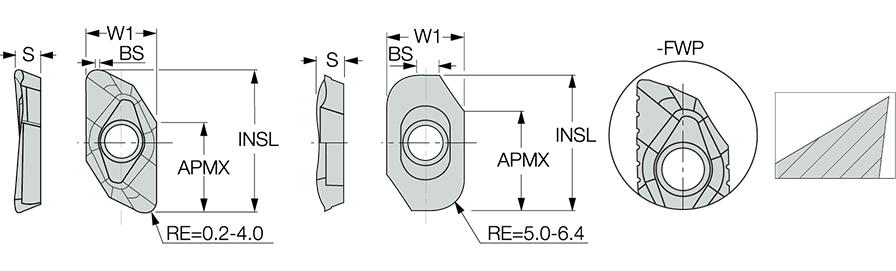

Milling Insert; 0.961″ Length × 0.504″ Width × 0.189″ Thickness ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Insert Length (INSL) | 24.4 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 3.2 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 15.5 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Width (W1) | 12.8 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 4.8 mm | Cutting Edge Effective Length (LE) | 15.4 mm |
| Wiper Edge Length (BS) | 1 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | HELIALU super positive and polished rake inserts for machining aluminum. | Country of Origin | Israel |
| Remarks | It is recommended to use the insert and screw set when machining at very high cutting speeds (see HSM90 SET). |
Shipping Info
Package Weight
0.026
