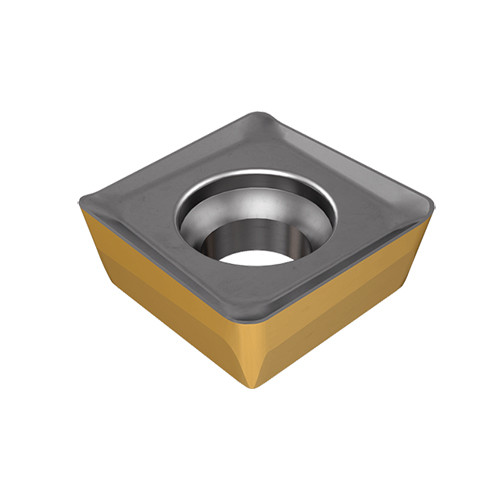

SPMR 100408PDR IC808
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |

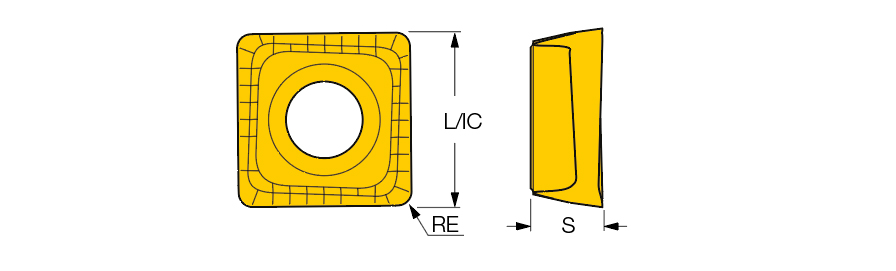

| Insert Length (INSL) | 0.402″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.402″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Thickness (S) | 0.163″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Precision insert used for semi-finishing and finishing applications | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
