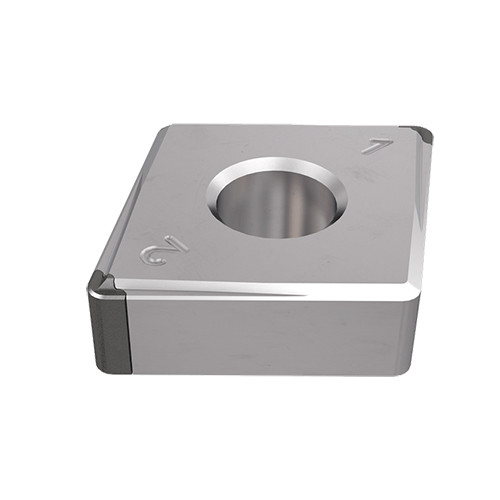

CNGG 120408-M4HM-J IB22HC
Turning Insert; 60 Triangle ; 0.508″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IB22HC

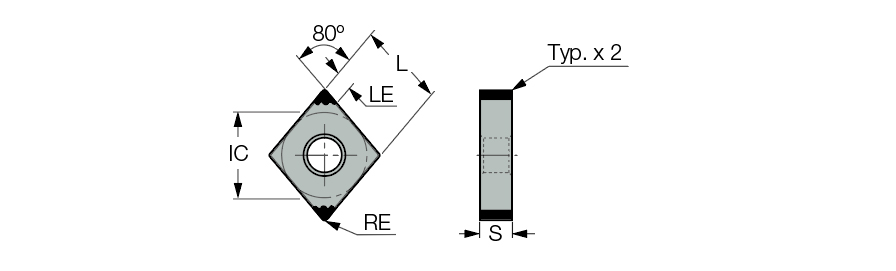

| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.8 mm | Min D.O.C. | 0.12 mm |
| Insert Size | 432-M4 | Depth of Cut Maximum (APMX) | 0.8 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Grade | IB22HC | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features
| Family Description | 80° Rhombic insert with 4 chipbreaking CBN tips for hardened steel and high temperature alloys. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.033
