| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. Round Face & Turn | Ext. Round Insert Neutral | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Min D.O.C. | 0.1 mm |
| Insert Size | 3T | Depth of Cut Maximum (APMX) | 2 mm |

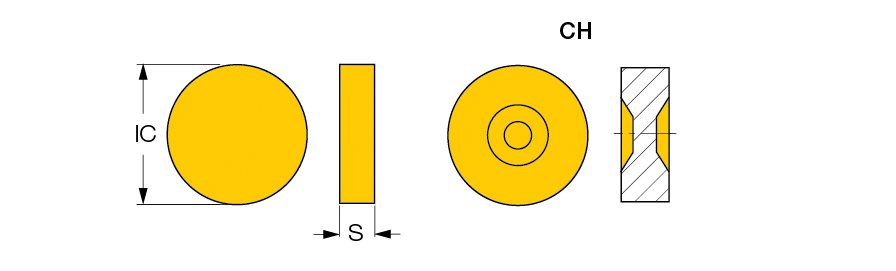

| Insert Thickness (S) | 4.76 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Cutting Edge Material | Whiskers | Chip Breaker Type | N |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | IW7 | Body Material | Carbide |
Product Features
| Family Description | Negative round double-sided ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.005
