12J4B-1504281R01

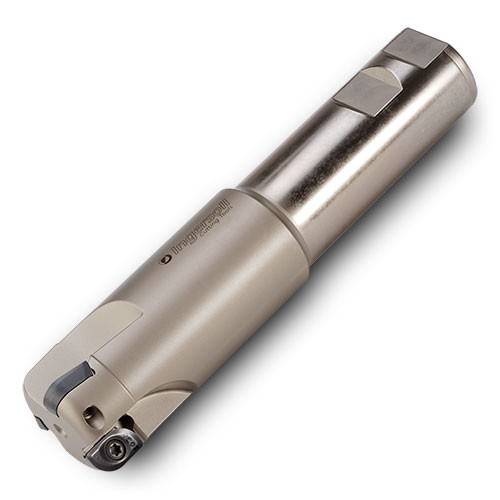

Indexable End Mill; 1-1/2″ Dia. × 0.6″ LOC × 1-1/4″ Shank Dia. × 6-1/2″ OAL × 4-1/4″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Usable Length (LU) | 4-1/4″ |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.6″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6-1/2″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Protruding Length (LPR) | 4-1/4″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corners: .187″, .250″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.005
