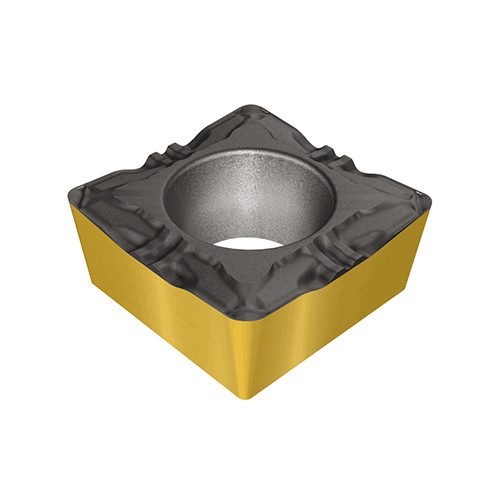

SCMT 09T308-F3P IC8250
Turning Insert; 60 Triangle ; 3/8″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IC8250 ; Carbide ; TiCN+Al2O3+TiN

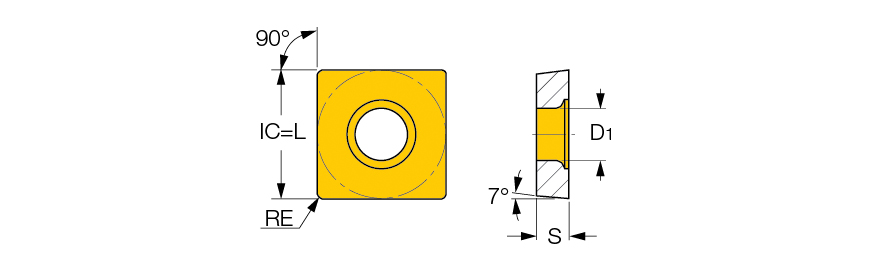

| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.8 mm | Min D.O.C. | 0.15 mm |
| Insert Size | 3-2-F3 | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 9.52 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.32 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | F3P |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | IC8250 | Body Material | Carbide |
Product Features
| Family Description | Square 7° flank inserts, for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info |
Shipping Info
Package Weight
0.01
