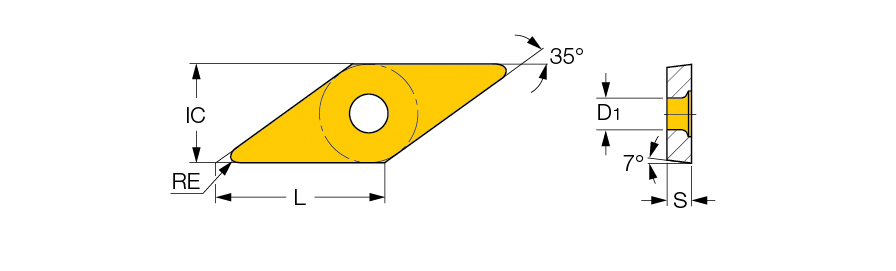

VCMT 160412-M3M IC6025
Turning Insert; 60 Triangle ; 0.654″ Length × 3/8″ IC × 0.0472″ Corner Radius ; IC6025 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Stainless Steel | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 1.2 mm | Min D.O.C. | 1 mm |
| Insert Size | 333-M3 | Depth of Cut Maximum (APMX) | 5 mm |
| Cutting Edge Length (L) | 16.6 mm | Min. Turning Feed (ft(min)) | 0.13 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | M3M |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | IC6025 | Body Material | Carbide |
Product Features
| Family Description | 35° rhombic 7° positive flank inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.023
