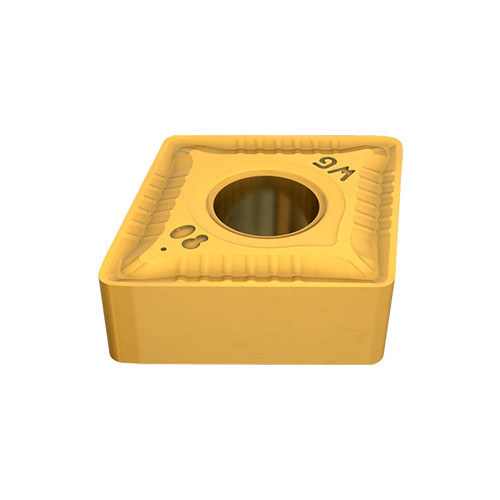

CNMG 433-WG IC8150
| Applicable Material | | Steel | Cast Iron | | Fixing Hole Diameter (D1) | 0.203″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | CNMG | Min D.O.C. | 0.059″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Size | 433 | Min. Turning Feed (ft(min)) | 0.01181 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Max. Turning Feed (ft(max)) | 0.03149 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | WG |
| Coating | TiCN+Al2O3+TiCN+TiN | Measurement Type | Inch |
| Grade | IC8150 | Body Material | Carbide |
Product Features

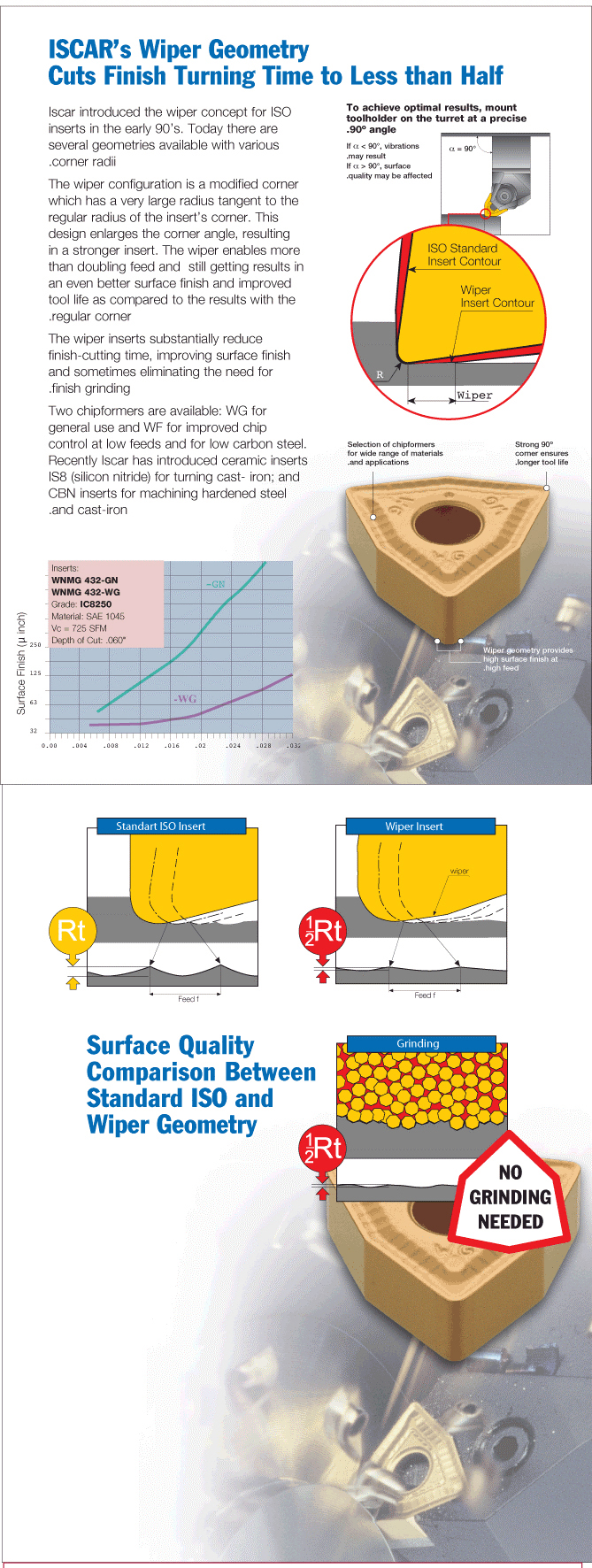

| Family Description | Double-sided 80° rhombic wiper inserts for high surface finish at high feed turning (.012 to .024 ipr). Three to five times better surface finish compared to standard turning inserts at the same feeds. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.022
