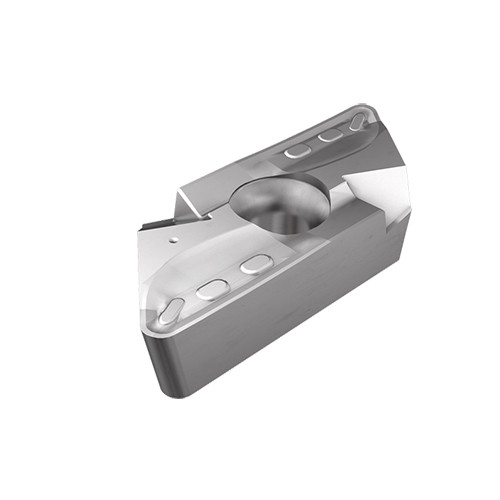

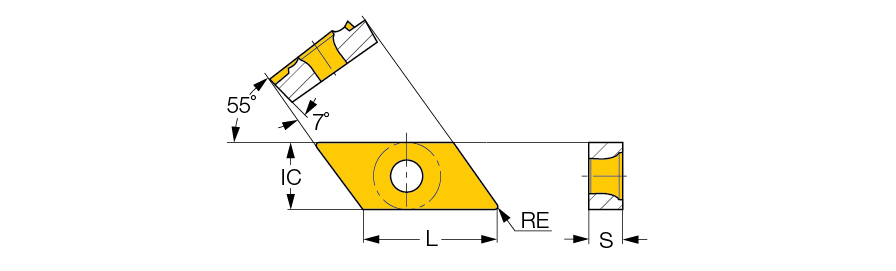

KNMX 3331-RP IC8150
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.039″ |
| Insert Style | KNMX | Depth of Cut Maximum (APMX) | 0.157″ |
| Corner Radius (RE) | 0.0197″ | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Insert Size | 333 | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Cutting Edge Length (L) | 0.776″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | R/LP |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 |
Product Features
| Family Description | 55° parallelogram inserts for profiling. Negative along the cutting edge and positive flank along the narrow edge. | Country of Origin | Israel |
Shipping Info
Package Weight
0.028
