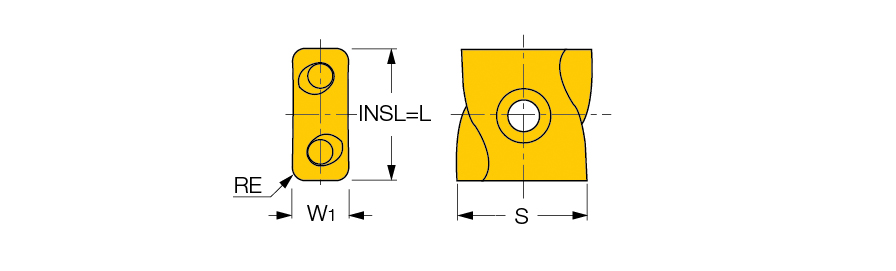

LNMX 110412L-HM IC8250
Turning Insert; Rectangle ; 0.433″ Length × 0.0472″ Corner Radius ; IC8250 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. Tangential 93° Approach | Ext. Tangential 93°Face Approa | Int. Tangential 93° Approach | | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Insert Size | 110412 | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Insert Thickness (S) | 11.4 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | HM |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | IC8250 | Body Material | Carbide |
Product Features
| Family Description | Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on stainless steel, high temperature alloys and soft, low carbon steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.305
