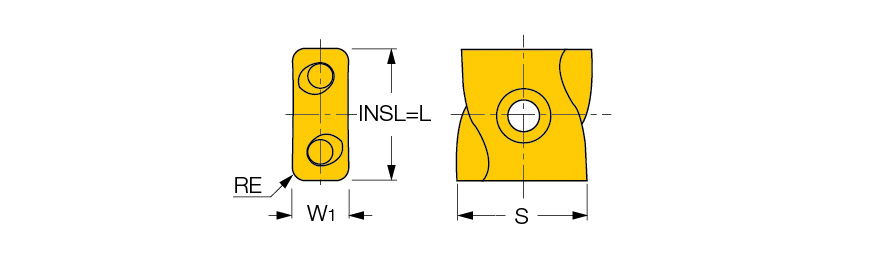

LNMX 150612L-HT IC907
Turning Insert; Rectangle ; 0.591″ Length × 0.0472″ Corner Radius ; IC907 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. Tangential 75° Approach | Ext. Tangential 93° Approach | Ext. Tangential 93°Face Approa | Int. Tangential 93° Approach | | Min D.O.C. | 1.5 mm |
| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 7 mm |
| Insert Size | 150612 | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 15 mm | Max. Turning Feed (ft(max)) | 0.8 mm/rev |
| Insert Thickness (S) | 13.4 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | HT |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC907 | Body Material | Carbide |
Product Features
| Family Description | Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on alloy and stainless steel and on cast iron. | Country of Origin | Israel |
Shipping Info
Package Weight
0.032
