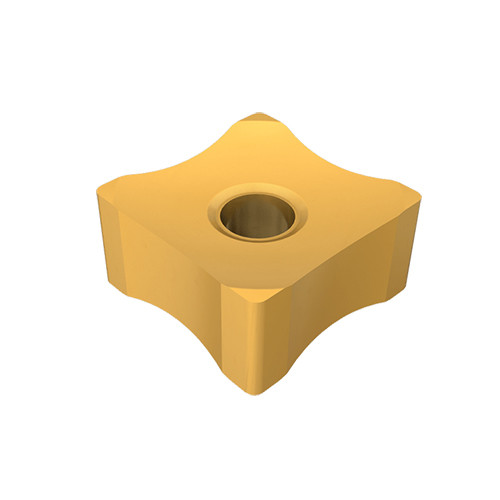

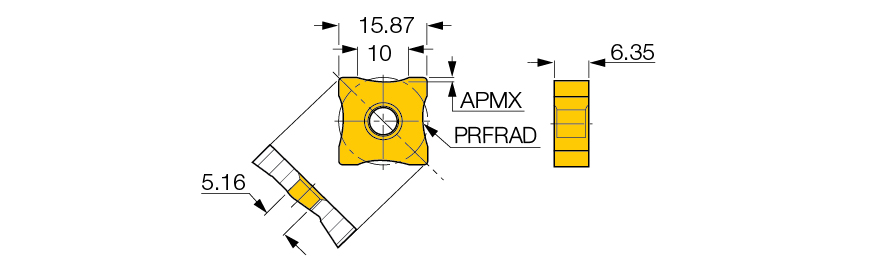

SNMX 150608R-15 IC418
| Applicable Material | | Cast Iron | | Fixing Hole Diameter (D1) | 5.16 mm |
| Application | | Ext. Pipe Skiving | | Tool Type | Turn Negative Inserts |
| Insert Style | SNMX | Min D.O.C. | 0 mm |
| Corner Radius (RE) | 15 mm | Depth of Cut Maximum (APMX) | 0.86 mm |
| Insert Size | 150608 | Min. Turning Feed (ft(min)) | 0 mm/rev |
| Cutting Edge Length (L) | 15.87 mm | Max. Turning Feed (ft(max)) | 0 mm/rev |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 15.87 mm | Chip Breaker Type | M |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiC+Al2O3 | Body Material | Carbide |
| Grade | IC418 |
Product Features
| Family Description | Pipe skiving inserts used to remove the burr of welded tubes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.051
