| Applicable Material | | Steel | Stainless Steel | | Grade | IC8250 |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Fixing Hole Diameter (D1) | 1/4″ |
| Insert Style | SNMG | Tool Type | Turn Negative Inserts |

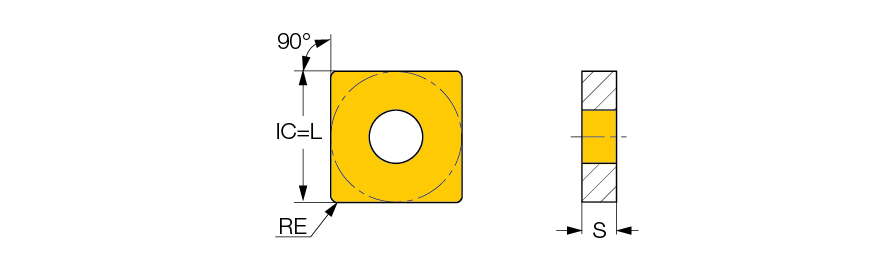

| Corner Radius (RE) | 0.0472″ | Min D.O.C. | 0.098″ |
| Insert Size | 543 | Depth of Cut Maximum (APMX) | 0.315″ |
| Cutting Edge Length (L) | 5/8″ | Min. Turning Feed (ft(min)) | 0.01181 ″/rev |
| Insert Thickness (S) | 1/4″ | Max. Turning Feed (ft(max)) | 0.02755 ″/rev |
| Inscribed Circle Diameter (IC) | 5/8″ | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features

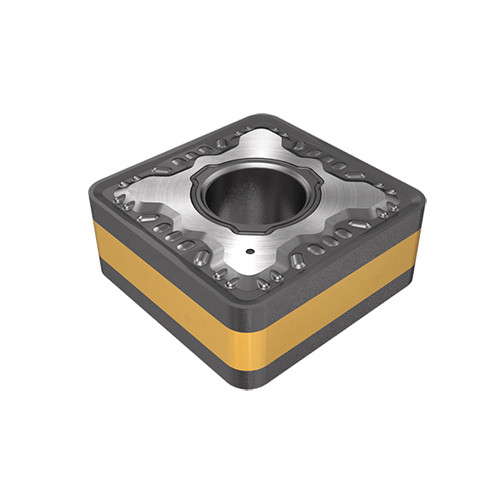

| Family Description | Double-Sided Square Inserts with Chipformer for rough Machining | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.058
