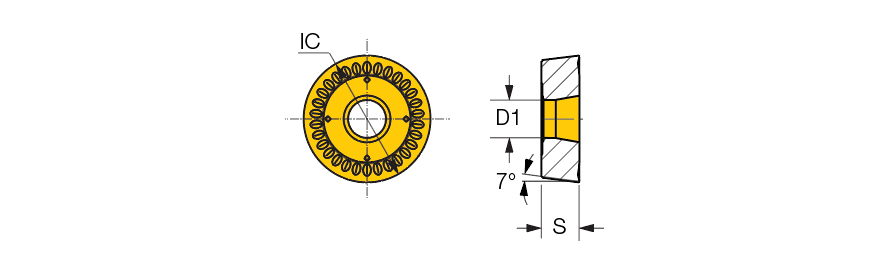

| Applicable Material | | Steel | Cast Iron | | Fixing Hole Diameter (D1) | 0.374″ |
| Application | | Ext. Round Face & Turn | | Tool Type | Turn Positive Inserts |
| Insert Style | RCMX | Min D.O.C. | 0.276″ |
| Insert Size | 320 | Depth of Cut Maximum (APMX) | 0.512″ |
| Insert Thickness (S) | 3/8″ | Min. Turning Feed (ft(min)) | 0.02755 ″/rev |
| Inscribed Circle Diameter (IC) | 1.26″ | Max. Turning Feed (ft(max)) | 0.07874 ″/rev |
| Cutting Edge Material | Carbide | Clearance Angle Major (AN) | 7 Degrees |
| Coating | TiCN+Al2O3+TiCN+TiN | Measurement Type | Inch |
| Grade | IC8150 | Body Material | Carbide |

Product Features

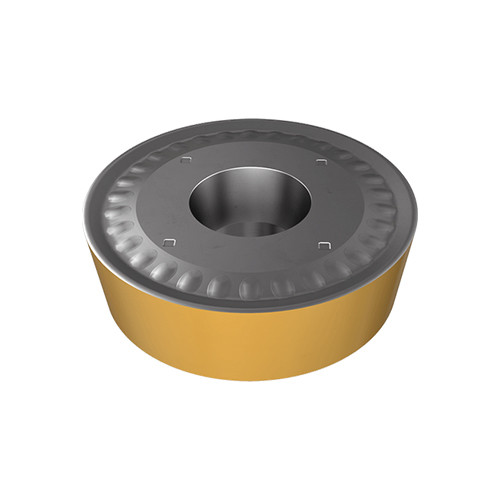

| Family Description | Round 7° inserts with a positive flank and strong cutting edge for rough turning. | Country of Origin | Israel |
| Remarks | For tolerances, see more info. |
Shipping Info
Package Weight
0.209
