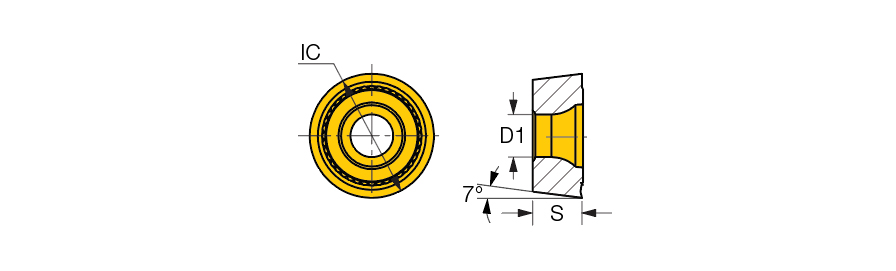

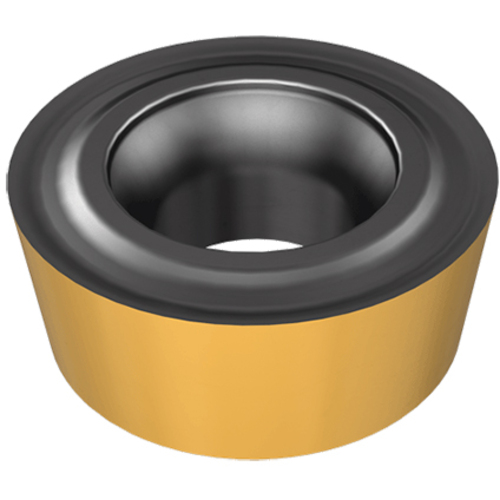

RCMT 1606M0-M3P-R IC8150
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Round Face & Turn | Y Axis Variable Approach angle | | Min D.O.C. | 0.079″ |
| Insert Style | RCMT | Depth of Cut Maximum (APMX) | 0.315″ |
| Insert Size | 160 | Min. Turning Feed (ft(min)) | 0.01574 ″/rev |
| Insert Thickness (S) | 1/4″ | Max. Turning Feed (ft(max)) | 0.03149 ″/rev |
| Inscribed Circle Diameter (IC) | 0.63″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | M3P-R |
| Coating | TiCN+Al2O3+TiCN+TiN | Measurement Type | Inch |
| Grade | IC8150 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.217″ |
Product Features
| Family Description | Round 7° positive flank inserts for medium profiling on a wide range of materials. Designed for machining bearing steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
14.7
