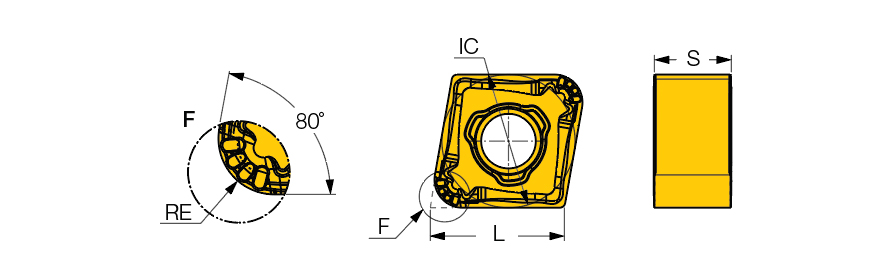

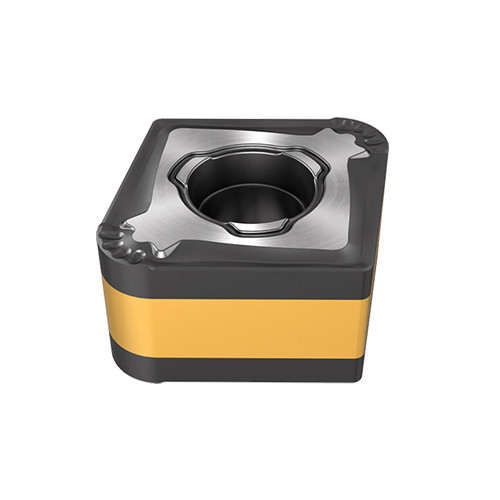

CNMX 191140-M3P IC8150
| Applicable Material | | Steel | Cast Iron | | Grade | IC8150 |
| Application | | Ext. Tangential 84° Approach | Ext. Tangential 93° Approach | | Fixing Hole Diameter (D1) | 0.307″ |
| Insert Style | CNMX | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.1575″ | Min D.O.C. | 0.118″ |
| Insert Size | 191 | Depth of Cut Maximum (APMX) | 0.236″ |
| Cutting Edge Length (L) | 0.761″ | Min. Turning Feed (ft(min)) | 0.01181 ″/rev |
| Insert Thickness (S) | 0.433″ | Max. Turning Feed (ft(max)) | 0.05905 ″/rev |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiCN+TiN |
Product Features
| Family Description | double-sided 80° rhombic inserts, used for railroad wheel re-turning. | Country of Origin | Israel |
Shipping Info
Package Weight
0.108
