| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC807 |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Fixing Hole Diameter (D1) | 0.313″ |
| Insert Style | CNMG | Tool Type | Turn Negative Inserts |

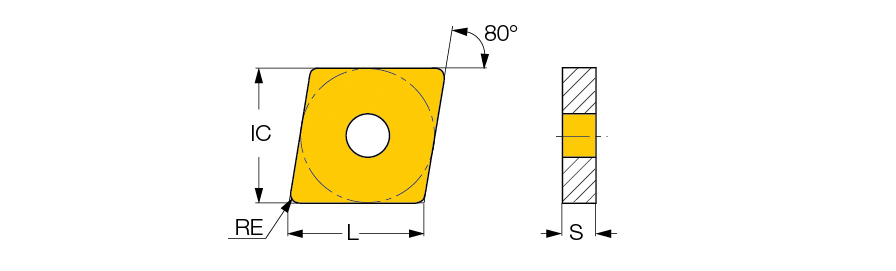

| Corner Radius (RE) | 0.0472″ | Min D.O.C. | 0.118″ |
| Insert Size | 643 | Depth of Cut Maximum (APMX) | 0.315″ |
| Cutting Edge Length (L) | 0.761″ | Min. Turning Feed (ft(min)) | 0.01181 ″/rev |
| Insert Thickness (S) | 1/4″ | Max. Turning Feed (ft(max)) | 0.03149 ″/rev |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN |
Product Features

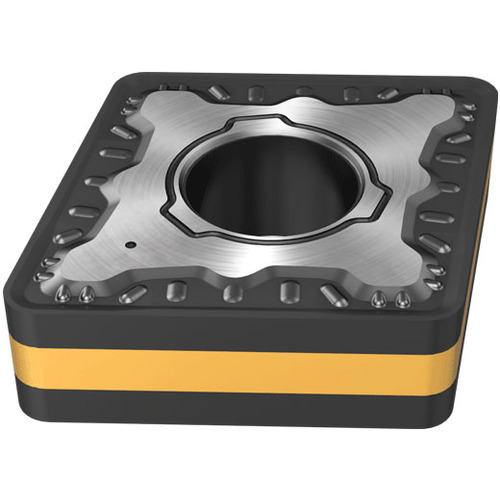

| Family Description | Double-Sided 80° Rhombic Inserts with a Chipformer for Rough Machining | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.071
