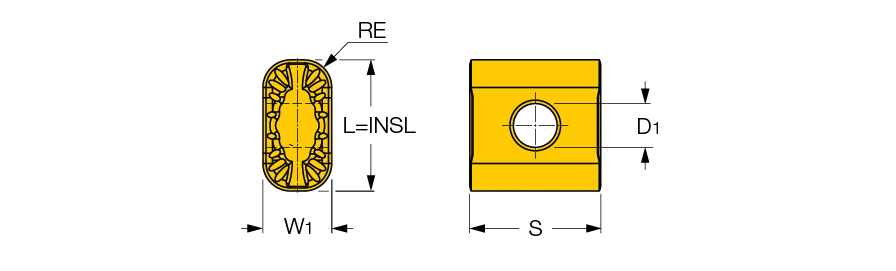

| Applicable Material | | Steel | Cast Iron | | Fixing Hole Diameter (D1) | 1/4″ |
| Application | | Ext. Tangential 84° Approach | Ext. Tangential 93° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | LNMX | Min D.O.C. | 0.008″ |
| Corner Radius (RE) | 0.1575″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Size | 191 | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Cutting Edge Length (L) | 3/4″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Insert Thickness (S) | 3/4″ | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Neutral |
| Coating | TiCN+Al2O3+TiCN+TiN | Measurement Type | Inch |
| Grade | IC8150 | Body Material | Carbide |
Product Features
| Family Description | Tangentially clamped inserts for railroad wheel re-turning. | Country of Origin | Israel |

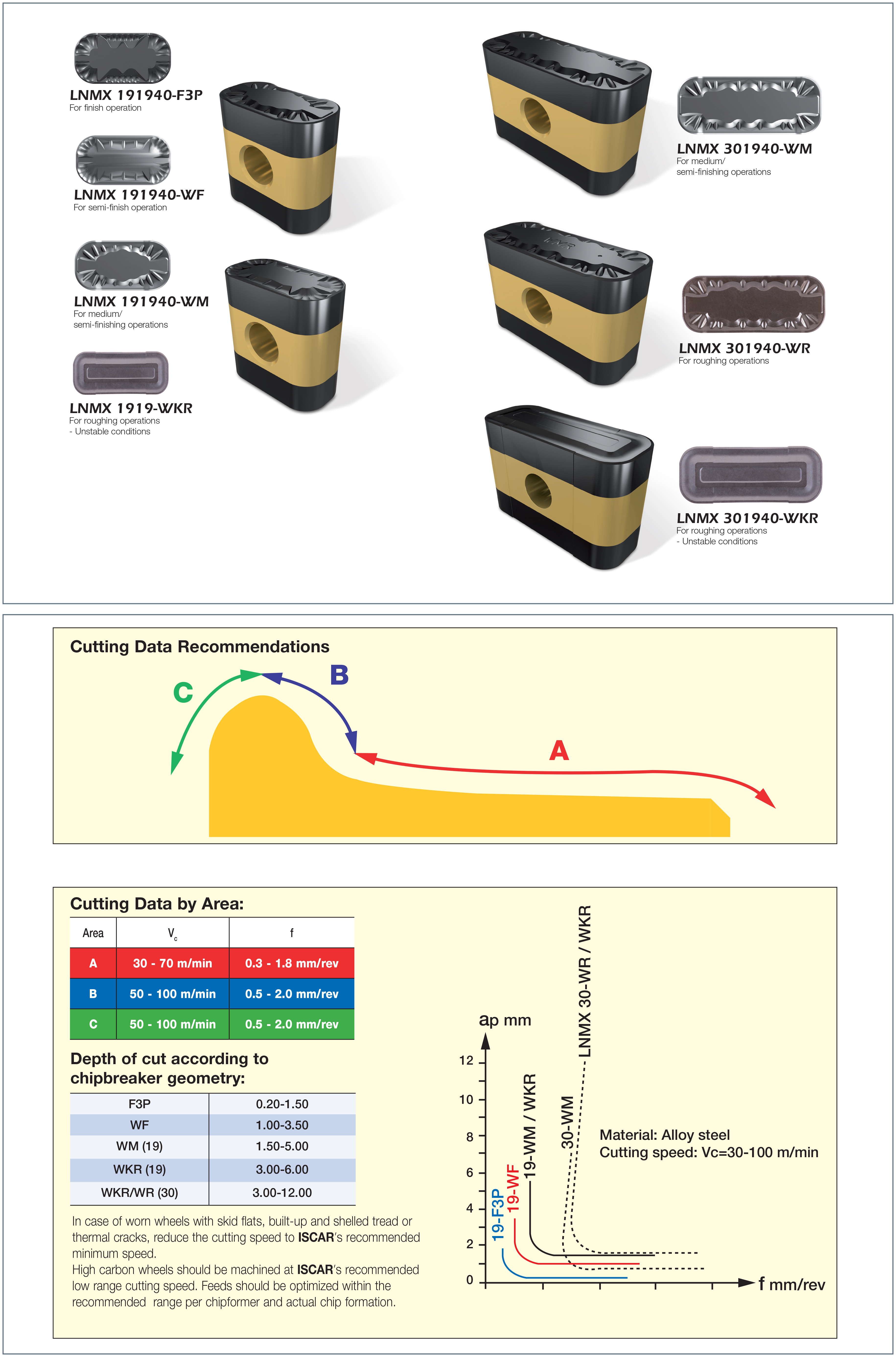

| Remarks | For chipformer information and application range, click on More Info |
Shipping Info
Package Weight
0.099
