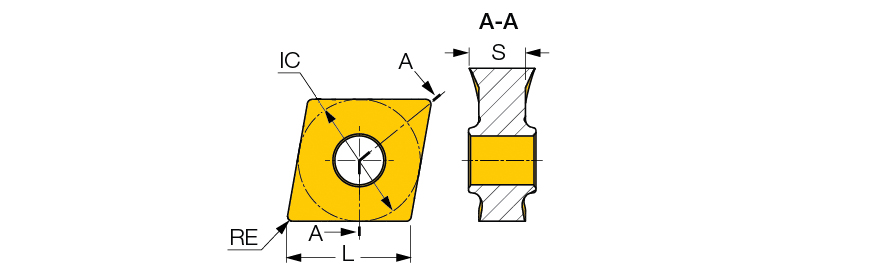

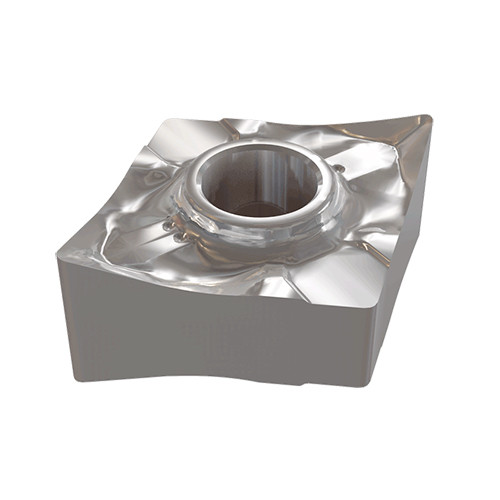

CNGX 342-M3N-P IC1520
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 0.031″ |
| Insert Style | CNGX | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Insert Size | 342 | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.173″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | M3N-P |
| Coating | DLC | Measurement Type | Inch |
| Grade | IC1520 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ |
Product Features
| Family Description | 80° double-sided very positive and polished rake inserts with a high positive radial and sharp edge. Used for medium machining conditions on aluminum alloys and other non-ferrous materials. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert. |
Shipping Info
Package Weight
0.013
