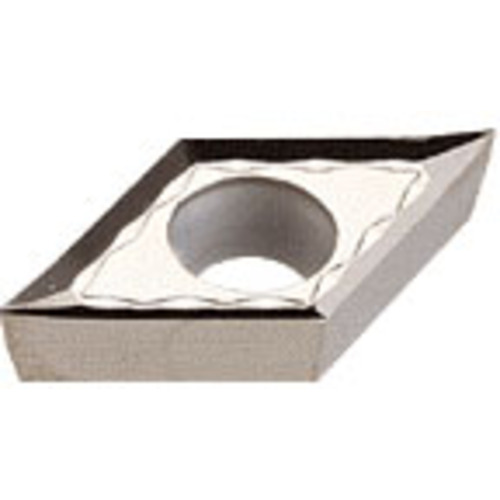

DCGT 3-1-AS IC1520
55° rhombic inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Inserts AL, HTA Geometric |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Min D.O.C. | 0.02″ |

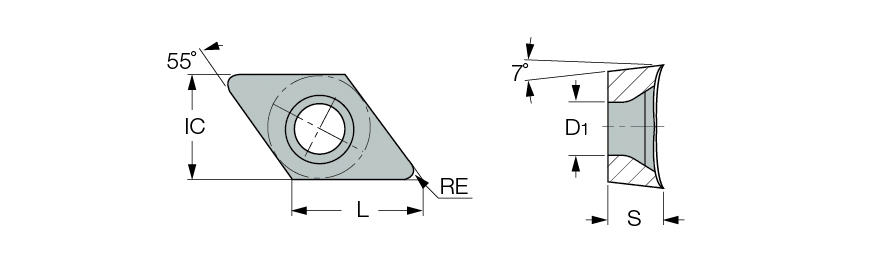

| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Size | 11T | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.457″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | AS |
| Coating | DLC | Measurement Type | Inch |
| Grade | IC1520 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ |
Product Features
| Family Description | 55° rhombic inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum. | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
LocalField10
0
Package Weight
0.183
