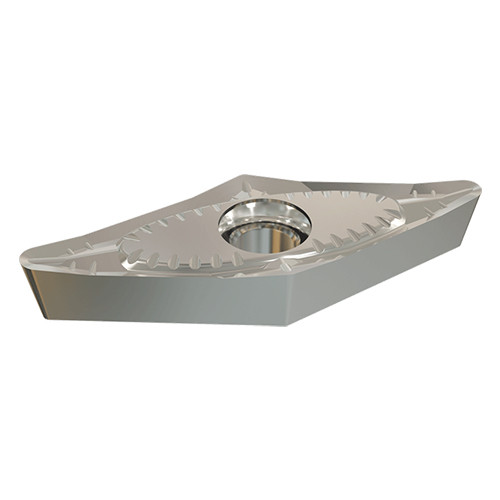

VCGT 220516-AF IC1520
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 142° Approach | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | Int. Machining Aluminum Wheels | | Tool Type | Turn Inserts AL, HTA Geometric |
| Insert Style | VCGT | Min D.O.C. | 0.059″ |

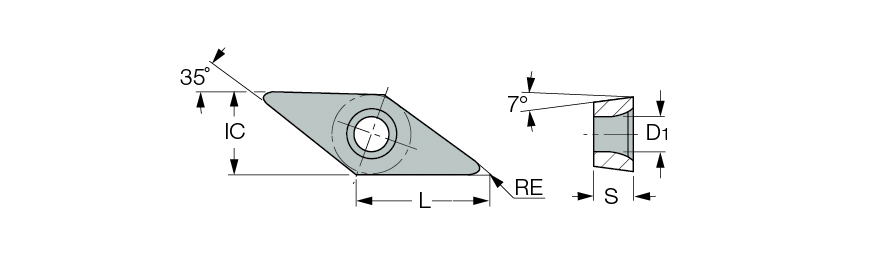

| Corner Radius (RE) | 0.063″ | Depth of Cut Maximum (APMX) | 0.177″ |
| Insert Size | 220 | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Cutting Edge Length (L) | 0.87″ | Max. Turning Feed (ft(max)) | 0.01377 ″/rev |
| Insert Thickness (S) | 0.219″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | AF |
| Grade | IC1520 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.217″ | Body Material | Carbide |
Product Features
| Family Description | The -AF chipformer was designed for machining aluminum in a wide range of machining conditions. It is peripherally ground and has a polished rake face. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.042
