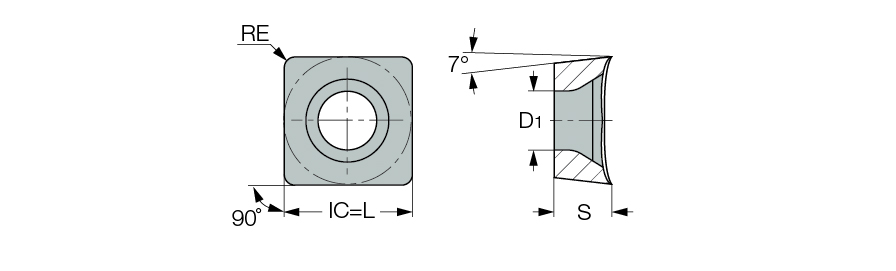

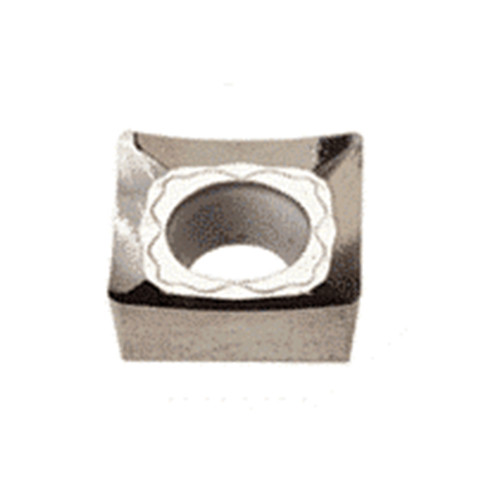

SCGT 432-AS IC1520
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | | Tool Type | Turn Inserts AL, HTA Geometric |
| Insert Style | SCGT | Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Size | 432 | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Cutting Edge Length (L) | 1/2″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | AS |
| Grade | IC1520 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.217″ | Body Material | Carbide |
Product Features
| Family Description | Square inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.017
