CCGT 3-1-AS IC1520

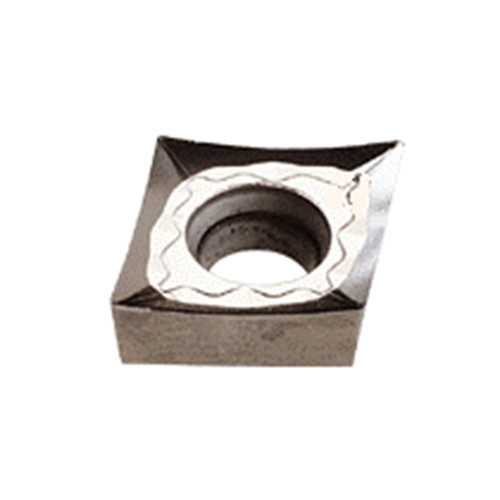

80° rhombic inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Inserts AL, HTA Geometric |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Size | 09T | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |

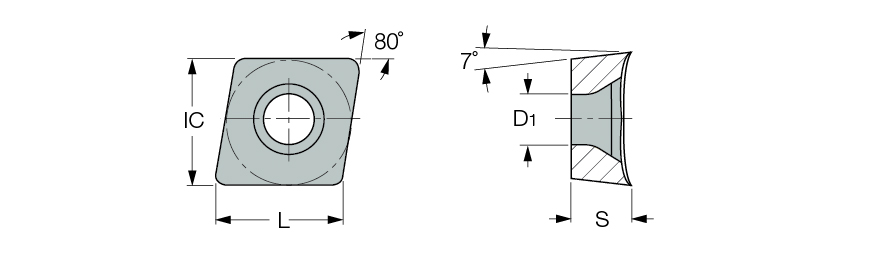

| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | AS |
| Coating | DLC | Measurement Type | Inch |
| Grade | IC1520 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ |
Product Features
| Family Description | 80° rhombic inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum. | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
