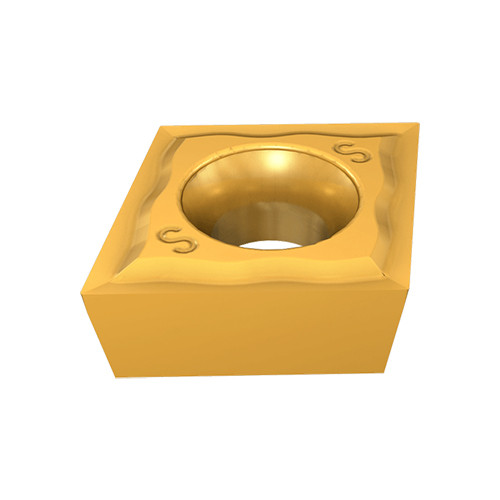

CCGT 3-.004-F1M-12P IC1008
Turning Insert; CCGT 3-.004-F1M-12P 1008 IC1008 ; 0.381″ Length ; 3/8″ IC ; 0.0039″ Corner Radius ; Carbide ; TiAlN+TiN

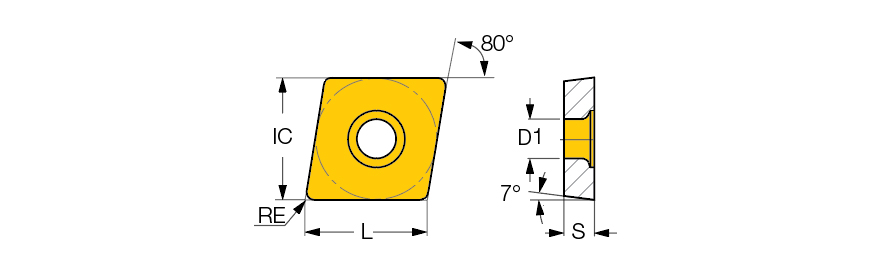

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Int. 80° Diamond 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | CCGT | Min D.O.C. | 0.003″ |
| Corner Radius (RE) | 0.0039″ | Depth of Cut Maximum (APMX) | 0.177″ |
| Insert Size | 3-. | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Cutting Edge Length (L) | 0.381″ | Max. Turning Feed (ft(max)) | 0.00708 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | F1M |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1008 |
Product Features
| Family Description | 80° rhombic 7° flank inserts for very low finish turning conditions of steel. Low cutting forces due to sharp ground cutting edge and a positive rake angle. | Country of Origin | Israel |
Shipping Info
Package Weight
0.01
