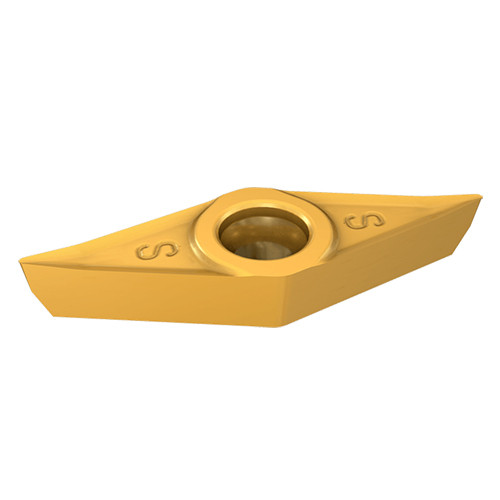

VCGT 220-F1M-12P IC1008
Turning Insert; VCGT 220-F1M-12P 1008 IC1008 ; 0.436″ Length ; 1/4″ IC ; 0.0079″ Corner Radius ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC1008 |

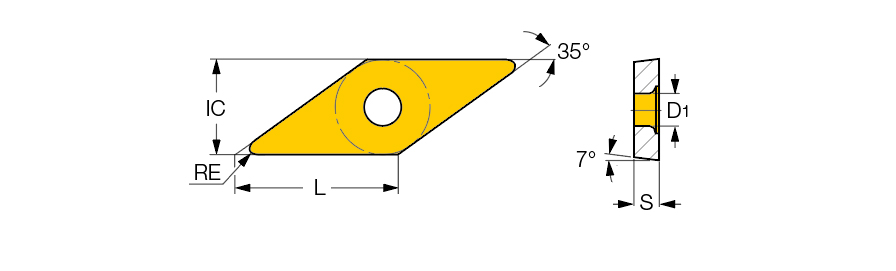

| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 142° Approach | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | Y Axis for Swiss Type Machines | | Fixing Hole Diameter (D1) | 0.114″ |
| Insert Style | VCGT | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0079″ | Min D.O.C. | 0.002″ |
| Insert Size | 220 | Depth of Cut Maximum (APMX) | 0.157″ |
| Cutting Edge Length (L) | 0.436″ | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
Product Features
| Family Description | 35° rhombic 7° positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
