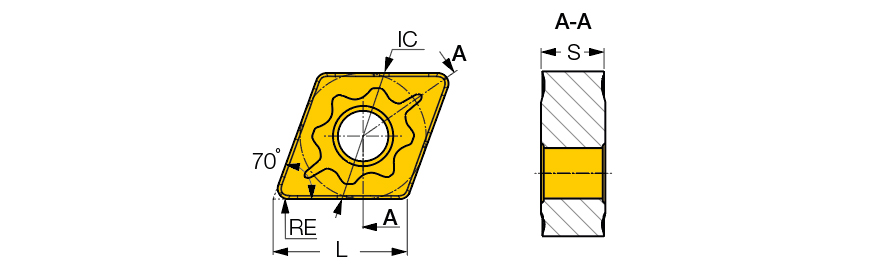

XNMG 431-F3M IC6025
| Applicable Material | | Stainless Steel | | Fixing Hole Diameter (D1) | 0.203″ |
| Application | | Ext. 70° Diamond 93° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | XNMG | Min D.O.C. | 0.016″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Size | 431 | Min. Turning Feed (ft(min)) | 0.00275 ″/rev |
| Cutting Edge Length (L) | 0.532″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | F3M |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC6025 |
Product Features

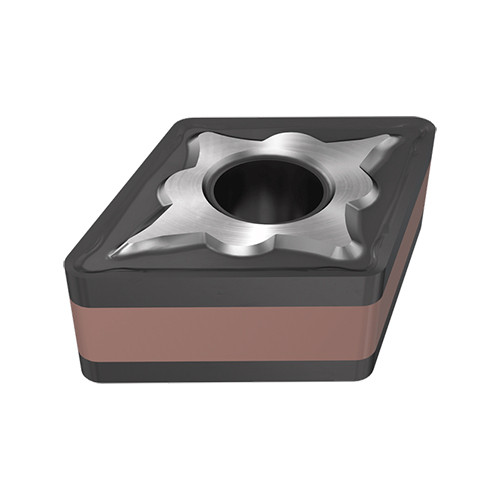

| Family Description | Double-sided 70° Rhombic Inserts for Stainless Steel Finishing Applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.029
