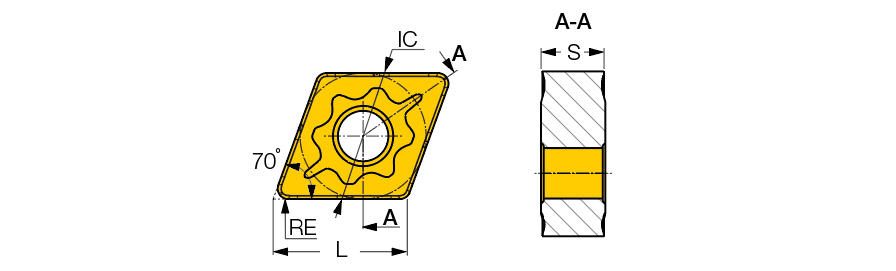

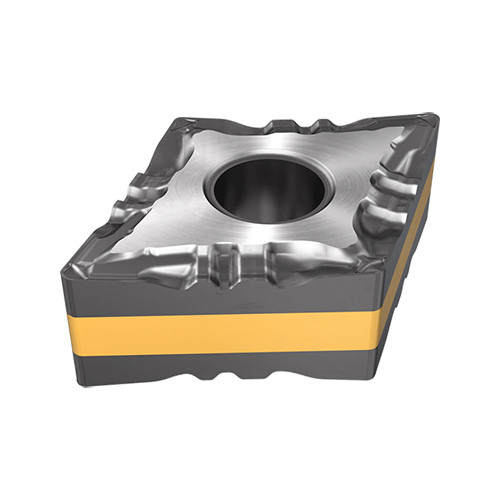

XNMG 432-F3P IC830
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.203″ |
| Application | | Ext. 70° Diamond 93° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | XNMG | Min D.O.C. | 0.035″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Size | 432 | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Cutting Edge Length (L) | 0.532″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | F3P |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | Double-Sided 70° Rhombic Inserts for Semi-Finishing and Finishing Applications | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.028
