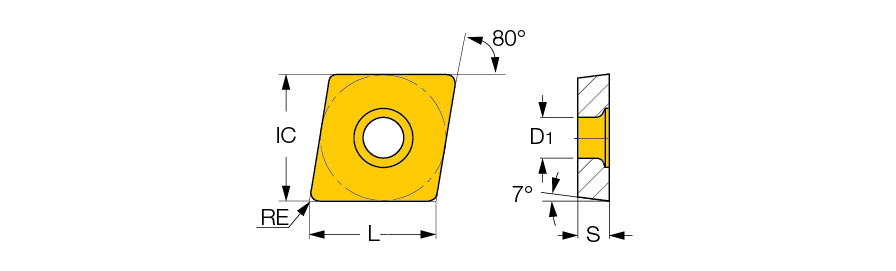

CCMT 120404-M3M IC807
Turning Insert; 60 Triangle ; 0.508″ Length × 1/2″ IC × 0.0157″ Corner Radius ; IC807 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 5.5 mm |
| Application | | Int. 80° Diamond 95° Approach | Int. 80°Diamond 90° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.4 mm | Min D.O.C. | 0.4 mm |
| Insert Size | 431-M3 | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | M3M |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC807 | Body Material | Carbide |
Product Features
| Family Description | 80° rhombic 7° positive flank inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.022
