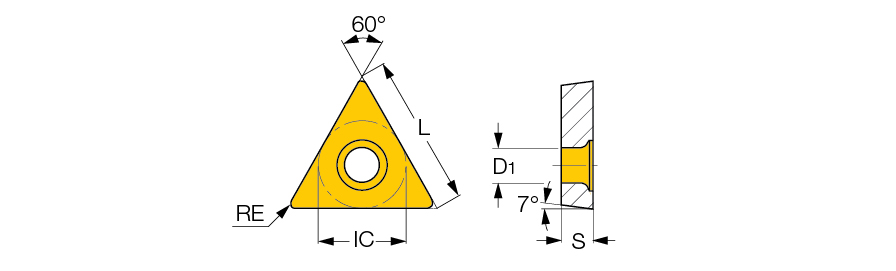

TCMT 2-0-F3P IC807
Turning Insert; 60 Triangle ; 0.433″ Length × 1/4″ IC × 0.008″ Corner Radius ; IC807 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.2 mm | Min D.O.C. | 0.06 mm |
| Insert Size | 2-0-F3 | Depth of Cut Maximum (APMX) | 1.7 mm |
| Cutting Edge Length (L) | 11 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.14 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | F3P |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC807 | Body Material | Carbide |
Product Features
| Family Description | Triangular positive flank inserts for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.006
