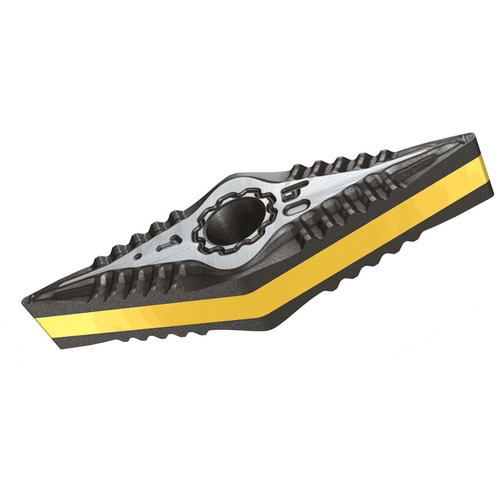

VNMG 2.5-1-F3P IC8250
| Applicable Material | | Steel | Stainless Steel | | Grade | IC8250 |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | VNMG | Min D.O.C. | 0.028″ |

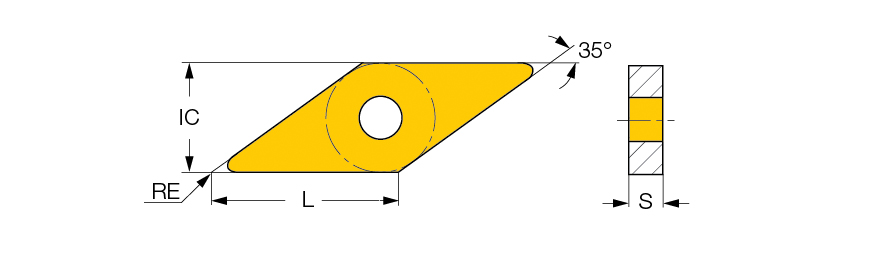

| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Size | 2.5 | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Cutting Edge Length (L) | 0.488″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Thickness (S) | 0.153″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 0.281″ | Chip Breaker Type | F3P |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features
| Family Description | Double-sided 35° rhombic inserts for semi-finishing and finishing applications on steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.011
