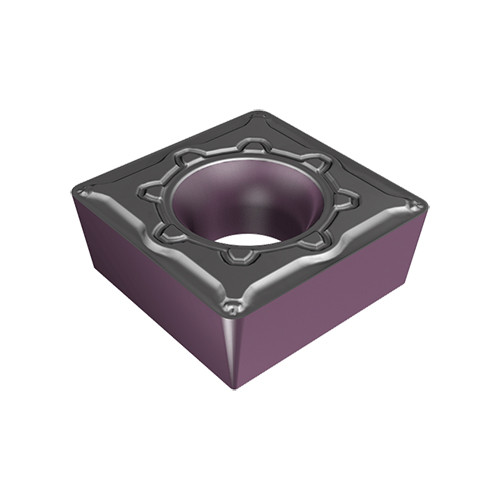

SCMT 09T304-F3M IC807
Turning Insert; 60 Triangle ; 3/8″ Length × 3/8″ IC × 0.0157″ Corner Radius ; IC807 ; Carbide ; TiAlN+TiN

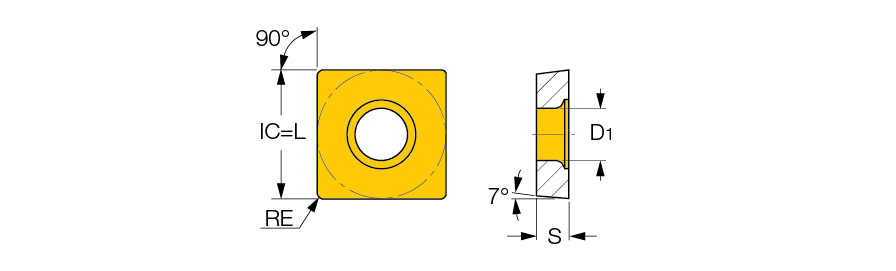

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.4 mm | Min D.O.C. | 0.11 mm |
| Insert Size | 3-1-F3 | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 9.52 mm | Min. Turning Feed (ft(min)) | 0.06 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | F3M |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC807 | Body Material | Carbide |
Product Features
| Family Description | Square positive flank inserts for stainless steel finishing applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info |
Shipping Info
Package Weight
0.011
