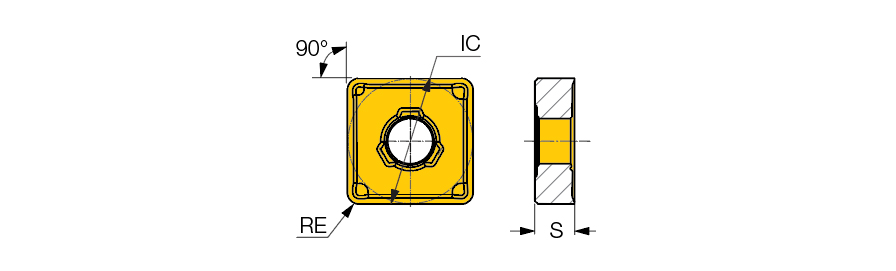

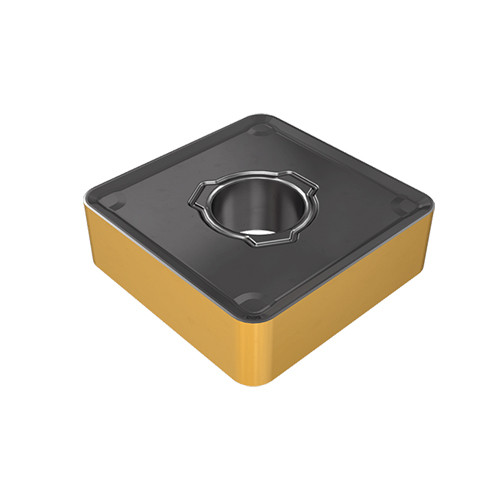

SNMM 856-R4P IC8150
| Applicable Material | | Steel | Cast Iron | | Grade | IC8150 |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Fixing Hole Diameter (D1) | 0.359″ |
| Insert Style | SNMM | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0945″ | Min D.O.C. | 0.157″ |
| Insert Size | 856 | Depth of Cut Maximum (APMX) | 0.669″ |
| Cutting Edge Length (L) | 1″ | Min. Turning Feed (ft(min)) | 0.02362 ″/rev |
| Insert Thickness (S) | 3/8″ | Max. Turning Feed (ft(max)) | 0.05118 ″/rev |
| Inscribed Circle Diameter (IC) | 1″ | Chip Breaker Type | R4P |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
Product Features
| Family Description | Single-sided square inserts for heavy turning applications on steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.136
