15B1G042043X8R00

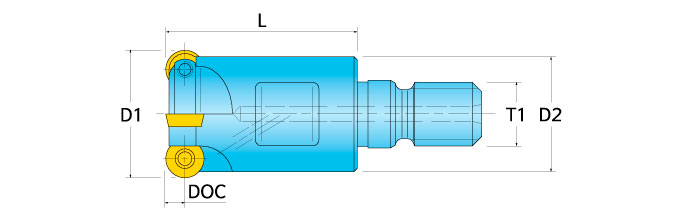

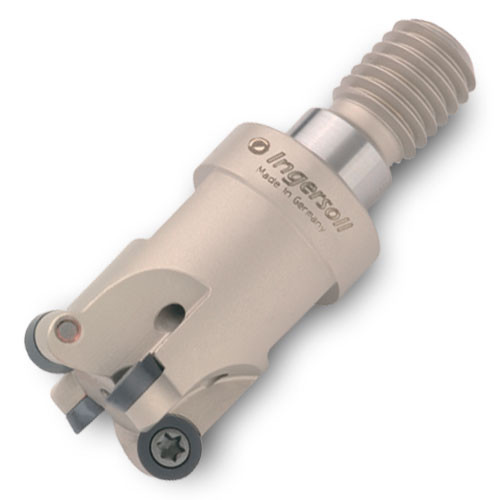

Indexable End Mill; 1.6535″ Dia. × 0.197″ LOC
| Cutting Diameter (DC/DCX) | 1.6535″ | Corner Radius (RE) | 0.197″ |
| Cutting Item Count (CICT) | 5 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.197″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 6 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1.693″ | Cutting Diameter Maximum (DCX) | 1.6535″ |
Product Features
| Family Description | Button I.C.: 6, 8, 10, 12, & 16 mm Inch & metric cutter bodies | Country of Origin | Germany |
Shipping Info
Package Weight
0.331
