CXMG 12T508-F3P IC8150
Turning Insert; 60 Triangle ; 0.541″ Length × 0.492″ IC × 0.0315″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Grade | IC8150 |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |

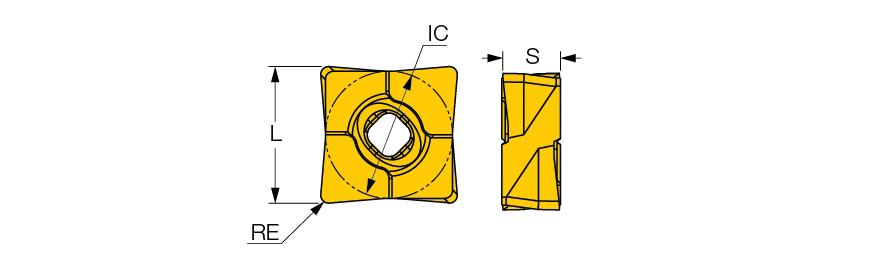

| Corner Radius (RE) | 0.8 mm | Min D.O.C. | 0.8 mm |
| Insert Size | 12T508 | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 13.75 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 5.8 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 12.5 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiCN+TiN |
Product Features
| Family Description | 80° double-sided and double-positive rhombic inserts with a positive rake for finishing on alloyed steel. Clamped in a dovetail rigid clamping pocket. Can be regarded as two positive inserts. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.027
