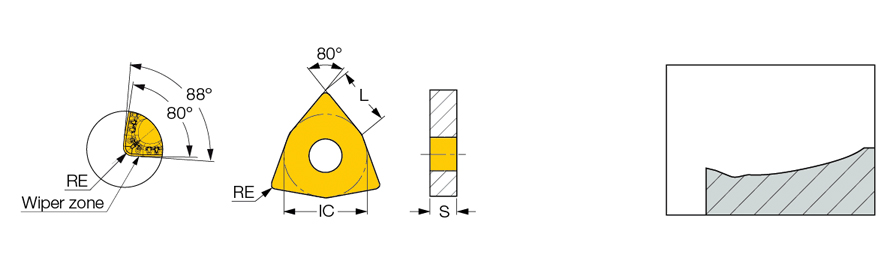

WNMX 060604-M3PW IC830
Turning Insert; 60 Triangle ; 0.256″ Length × 3/8″ IC × 0.0157″ Corner Radius ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 3.81 mm |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.4 mm | Min D.O.C. | 1 mm |
| Insert Size | 341-M3 | Depth of Cut Maximum (APMX) | 4 mm |
| Cutting Edge Length (L) | 6.5 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.41 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | HTW |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces a high surface finish even at high feed rates. Used for heavy machining applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
