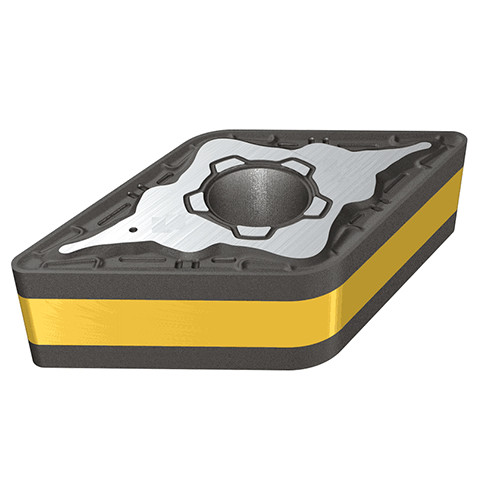

DNMG 432-M3P IC5005
Double-sided 55° rhombic inserts, for medium machining conditions on steel. Low cutting forces due to positive rake, provide smooth cutting.
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.236″ |
| Insert Size | 150 | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Cutting Edge Length (L) | 0.61″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | M3P |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC5005 |
Product Features
| Family Description | Double-sided 55° rhombic inserts, for medium machining conditions on steel. Low cutting forces due to positive rake, provide smooth cutting. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
