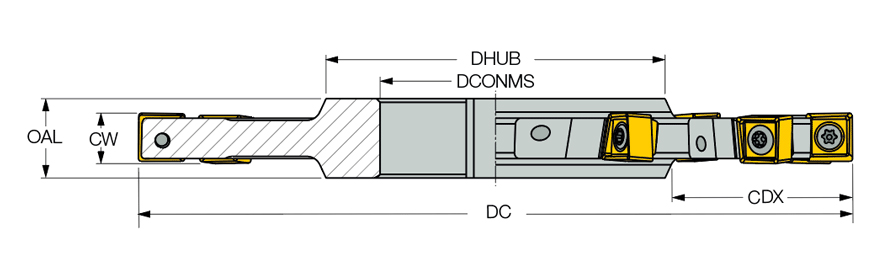

SDN D063-07-22-XN06
| Cutting Diameter (DC) | 63 mm | Overall Length (OAL) | 11 mm |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | XNMU 0603... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 15 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 30 mm | Body Material | Steel |
| Cutting Width (CW) | 7 mm |
Product Features
| Family Description | Full slot disk type slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
214
