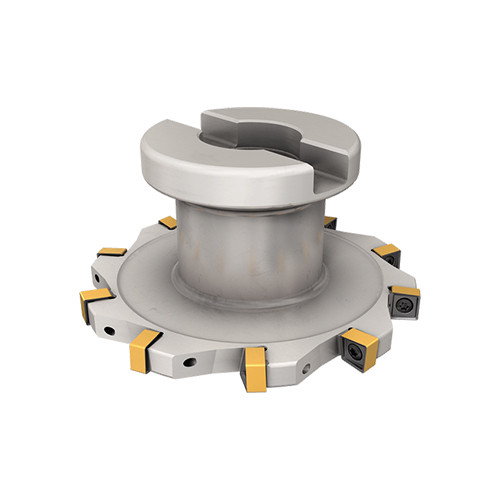

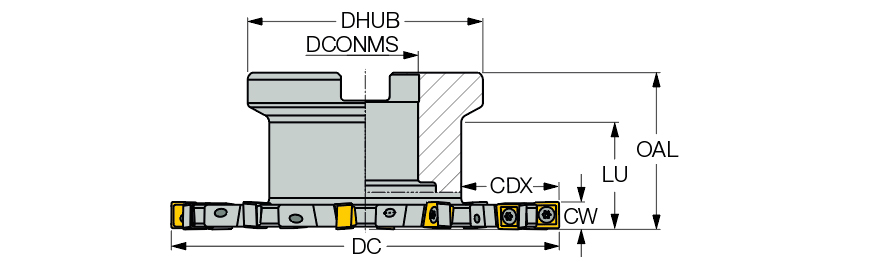

FDN D125-07-32-XN06
| Cutting Diameter (DC) | 125 mm | Flute Count (NOF) | 7 |
| Cutting Item Count (CICT) | 14 | Overall Length (OAL) | 45 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 14 | Master Insert Identification (MIID) | XNMU 0603... |
| Depth of Cut Maximum (APMX) | 7 mm | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 27 mm | Arbor Style | B |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 65 mm | Measurement Type | Metric |
| Cutting Width (CW) | 7 mm | Body Material | Steel |
| Usable Length (LU) | 31.5 mm |
Product Features
| Family Description | Full slot flange type, slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
2.449
