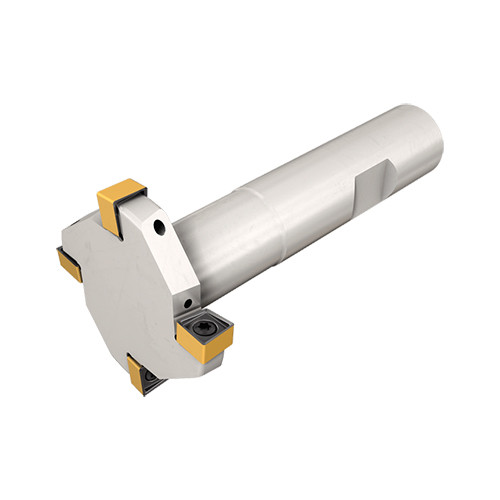

ETS D050-10-W20-XN06

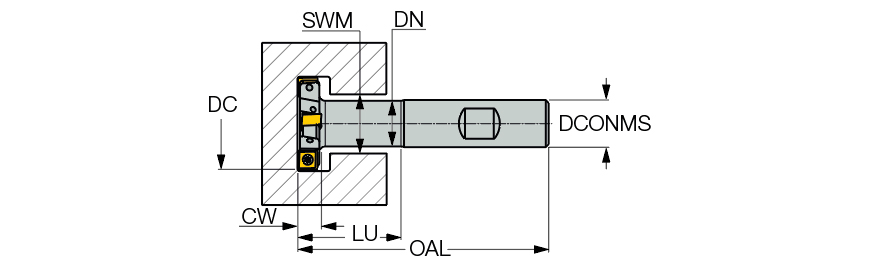

| Cutting Diameter (DC) | 49.8 mm | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Width (CW) | 10 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 14.5 mm | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Item Count (CICT) | 6 |
| Overall Length (OAL) | 90 mm | Master Insert Identification (MIID) | XNMU 06... |
| Usable Length (LU) | 38 mm | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon |
Product Features
| Family Description | T-SLOT endmills carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.780
