12J1D-1001784R01

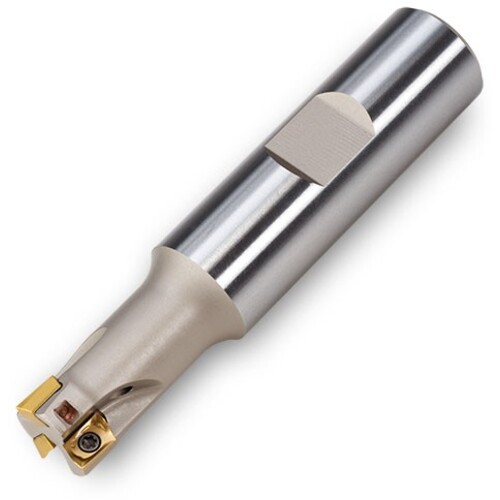

Indexable End Mill; 1″ Dia. × 13 mm LOC × 32 mm Shank Dia. × 130 mm OAL × 1-3/4″ LU ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 1-3/4″ |
| Cutting Diameter (DC) | 1″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 7 | Usable Length (LU) | 1-3/4″ |
| Depth of Cut Maximum (APMX) | 13 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Cutting Edge Length: .22″ Insert Corner: .008″, .015″, .031″ and .062″R | Country of Origin | Germany |
