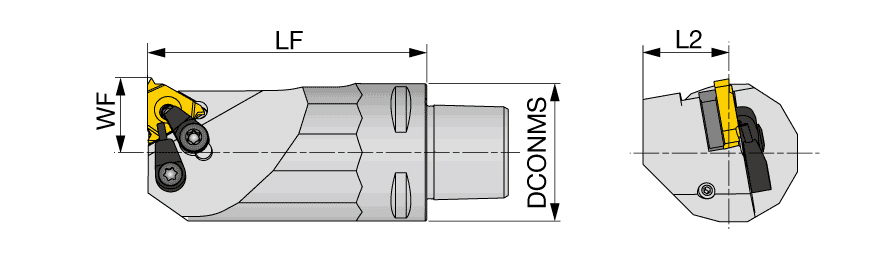

| Connection Diameter Machine Side (DCONMS) | 1.26″ | Functional Width (WF) | 0.709″ |
| Overall Length (OAL) | 2.559″ | Master Insert Identification (MIID) | 16ERA60 |
| Shank Size (SS) | C3 | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Application | | Ext Threading | Face contact interface | |

Product Features

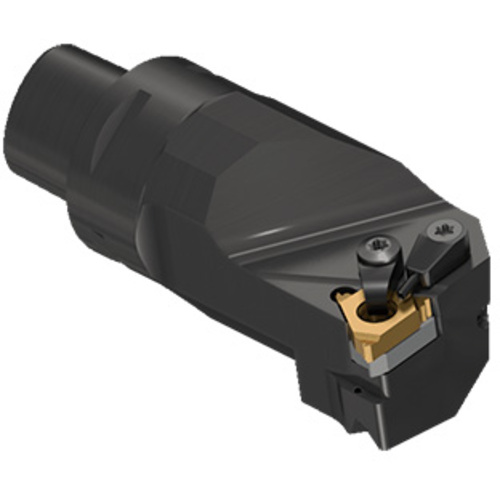

| Family Description | TungCap External threading toolholder, alternative clamping of screw-on or clamp-on, with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | Use left hand toolholders (L) with right hand inserts (R). Applicable for 14 MPa coolant Cannot be used for boring |
Shipping Info
Package Weight
0.000
