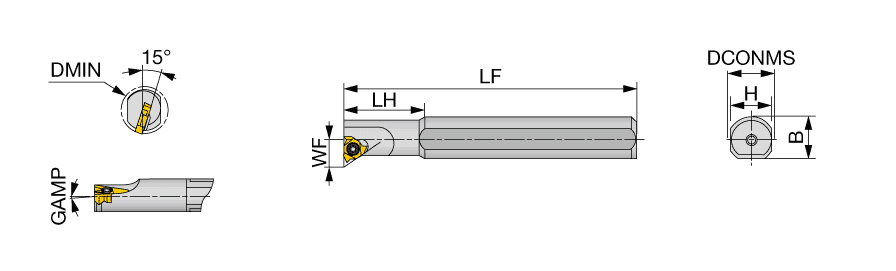

S10-SNR3-2
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | Internal Threading | |
| Minimum Bore Diameter (DMIN) | 3/4″ | Functional Width (WF) | 0.416″ |
| Head Length (LH) | 1.6″ | Master Insert Identification (MIID) | 16IRA60 |
| Overall Length (OAL) | 6″ | Body Material | Steel |
| Shank Height (H) | 0.6″ | Tool Type | Internal Indexable Threading Tools |
| Shank Width (B) | 0.613″ | Cutting Depth Maximum (CDX) | 1.6″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw-on internal threading toolholder | Country of Origin | JAPAN |
| Remarks | Use right hand toolholders (R) with right hand inserts (R); and left hand toolholders (L) with left hand inserts (L). |
Shipping Info
Package Weight
0.560
