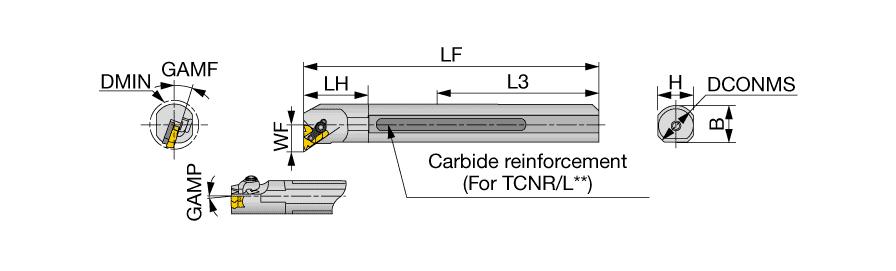

S16-CNR3DT
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Internal Threading | |
| Minimum Bore Diameter (DMIN) | 1.15″ | Functional Width (WF) | 0.652″ |
| Head Length (LH) | 1-1/2″ | Master Insert Identification (MIID) | 16IRA60 |
| Overall Length (OAL) | 8″ | Body Material | Steel |
| Shank Height (H) | 0.906″ | Tool Type | Internal Indexable Threading Tools |
| Shank Width (B) | 0.953″ | Cutting Depth Maximum (CDX) | 1-1/2″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Internal threading bar, Alternative clamping of screw-on or clamp-on (DT type only) | Country of Origin | JAPAN |
| Remarks | A clamp set for CNR/L type toolholders consists of a clamp and a clamping screw. A shim set for CNR/L type toolholders consists of a shim and a shim fixing screw. Standard shims for CNR/L type toolholders are commonly used for right and left hand toolholders. The right hand insert (IR) is used for the right hand toolholder (CNR...) and left hand insert (IL) is used for left hand toolholder (CNL...). |
Shipping Info
Package Weight
1.750
