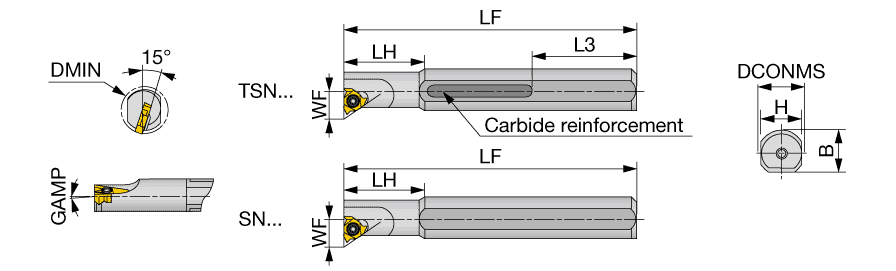

SNR0010M11SC-3
| Connection Diameter Machine Side (DCONMS) | 10 mm | Functional Width (WF) | 7.4 mm |
| Minimum Bore Diameter (DMIN) | 13 mm | Master Insert Identification (MIID) | 11IRA60 |
| Head Length (LH) | 24 mm | Body Material | Carbide |
| Overall Length (OAL) | 150 mm | Tool Type | Internal Indexable Threading Tools |
| Shank Height (H) | 9 mm | Cutting Depth Maximum (CDX) | 24 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | Internal Threading | |
Product Features
| Family Description | Screw-on internal threading toolholder | Country of Origin | JAPAN |
| Remarks | Use right hand toolholders (R) with right hand inserts (R); and left hand toolholders (L) with left hand inserts (L). |
Shipping Info
Package Weight
0.425
