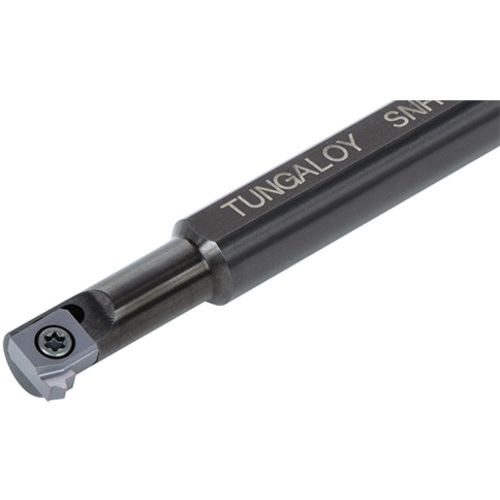

SNR0008K06SC-3
| Connection Diameter Machine Side (DCONMS) | 8 mm | Functional Width (WF) | 5.7 mm |
| Minimum Bore Diameter (DMIN) | 10 mm | Master Insert Identification (MIID) | 6IRA60 |
| Head Length (LH) | 18 mm | Body Material | Carbide |
| Overall Length (OAL) | 125 mm | Tool Type | Internal Indexable Threading Tools |
| Shank Height (H) | 7 mm | Cutting Depth Maximum (CDX) | 18 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | Internal Threading | |
Product Features
| Family Description | Small bar for internal threading, Screw-on clamp | Country of Origin | JAPAN |
| Remarks | Note: The right hand insert (6IR**type) is used for the right hand toolholders (SNR** type). |
Shipping Info
Package Weight
0.254
