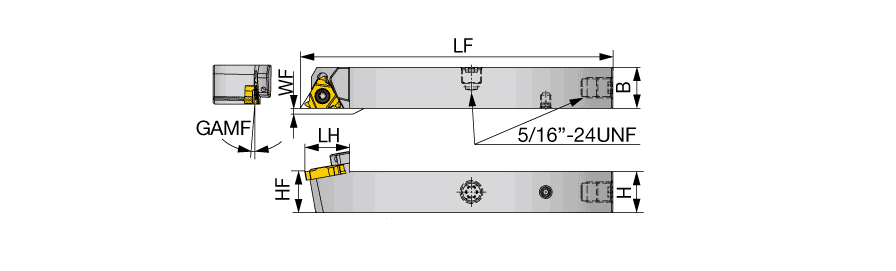

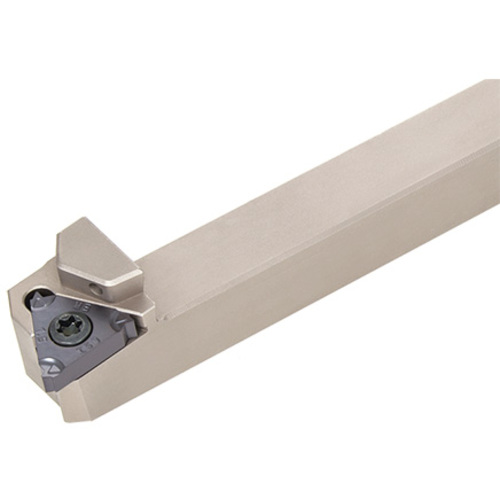

JSE2R08X16-CHP
| Head Length (LH) | 0.748″ | Functional Width (WF) | 0″ |
| Overall Length (OAL) | 4-3/4″ | Master Insert Identification (MIID) | 16ERA60 |
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | External Non-Rotating Threading Tools |
| Cutting Direction (HAND) | Right Hand | Cutting Depth Maximum (CDX) | 0.748″ |
| Application | | Ext Threading | | Measurement Type | Inch |
Product Features
| Family Description | External threading toolholder with high pressure coolant channels, for swiss-type lathe. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
