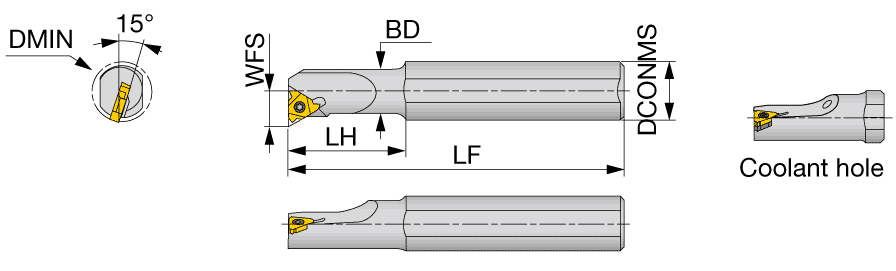

SIR0007K08CB
| Connection Diameter Machine Side (DCONMS) | 8 mm | Functional Width (WF) | 5.3 mm |
| Minimum Bore Diameter (DMIN) | 7.8 mm | Master Insert Identification (MIID) | 08IRA60 |
| Head Length (LH) | 30 mm | Body Material | Carbide |
| Overall Length (OAL) | 125 mm | Tool Type | Internal Indexable Threading Tools |
| Shank Height (H) | 7 mm | Cutting Depth Maximum (CDX) | 30 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | Internal Threading | | Body Diameter Reduced (BDRED) | 6.6 mm |
Product Features
| Family Description | Screw-on internal threading toolholder | Country of Origin | ISRAEL |
| Remarks | Use right hand toolholders (R) with right hand inserts (R). All toolholders are made for 1.5 helix angle. |
Shipping Info
Package Weight
0.000
