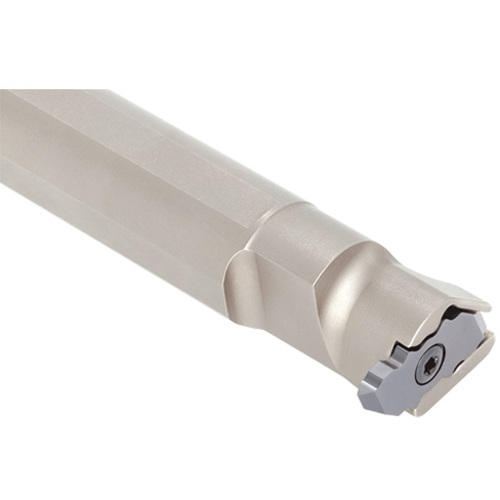

JS19G-SXXL09
| Shank Height (H) | 18 mm | Application | | Ext Threading | External grooving | For Miniature machining | |
| Shank Width (B) | 18 mm | Head Length (LH) | 21 mm |
| Connection Diameter Machine Side (DCONMS) | 19.05 mm | Body Material | Steel |
| Overall Length (OAL) | 90 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Threading toolholders with round shank for swiss lathes | Country of Origin | JAPAN |

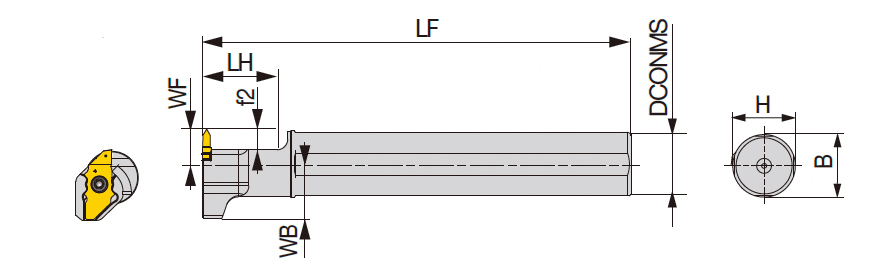

| Remarks | The round shank holder can take a threading insert (JXTG12FR type) or a parting off insert (JXPG06R and 12R types). When JX**06... insert is used, "WF" and "f2″ are shorter 2 mm. Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.483
