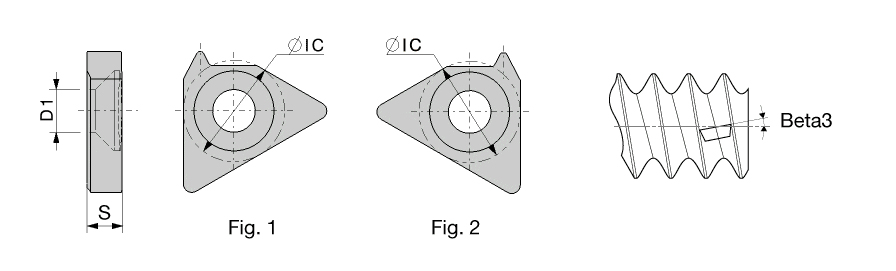

AE16-0 D30
| Application | | Accessories | | Insert Thickness (S) | 0.126″ |
| Measurement Type | Inch | Fixing Hole Diameter (D1) | 0.157″ |
| Body Material | Steel | Grade | D30 |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Insert Seat Size Code (SSC) | 16 | Coating | Uncoated |
| Inscribed Circle Diameter (IC) | 3/8″ |
Product Features
| Family Description | Lead angle adjustment shim set for clamp-on-type ST tools | Country of Origin | JAPAN |

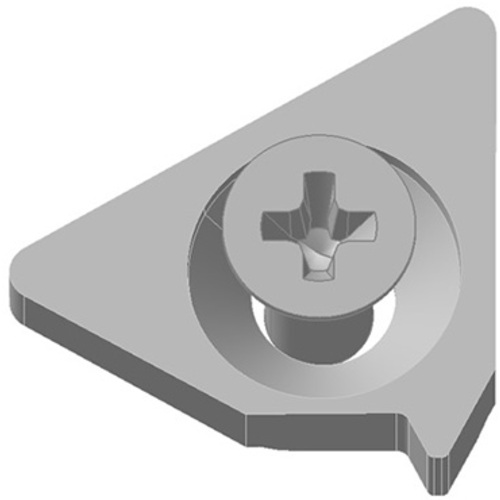

| Remarks | The shim set consists of a shim and a cross recessed countersunk flat head screw M3X0.5X8. |
Shipping Info
Package Weight
0.018
